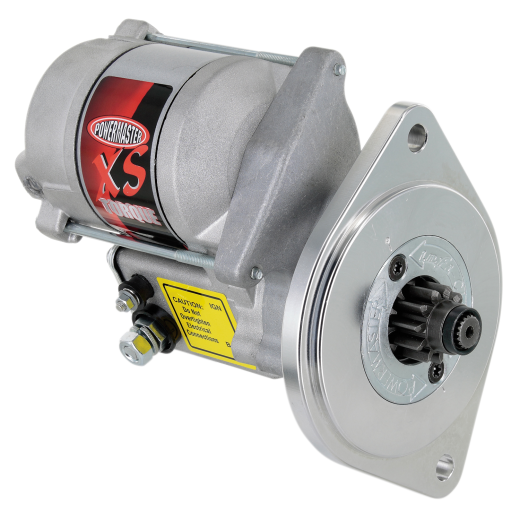

Str, XS Torque Infi-Clock™ Ford 2300cc 4 Cyl Hi Comp Race Engine 7/16" Mtg Holes Natural
- UPC: 692209021155
- Instruction Manual link 1 (PDF)
Part
9580
- Finish: Natural
Product Description
Powermaster's highly efficient XS Torque starters feature extra-powerful motors that churn out up to 200 lbs.-ft. of torque. Coupled with their 4.4:1 gear-reduction ratio, that equals reliable cranking power for engines, up to a whopping 18.0:1 compression ratio. These starters come with a billet adapter/mounting block for durability. They'll also clear your oil pan if the OE starter did. Some models are available in a chrome plated finish. Starter dyno test results are included. Order the replacement designed for your vehicle application.
- Feature Point 1: Clears Most Headers and Oil Pans
- Feature Point 2: No Heat Soak Or Hot Start Problems with Encapsulated Solenoid
- Feature Point 3: Billet Aluminum Mounting Block with infiCLOCK 360 Degree Rotation
- Feature Point 4: The Lightest 200ft.lb Starter Available
- Feature Point 5: Individually Dyno Tested with Proof of Performance Guarantee
- Torque Output: 200 lb/ft
- Gear Reduction: 4.4:1
- Horsepower: Up to 1.8 HP
- Wattage: Up to 1.4 kw
- Starter Series: XS Torque
- Starter Rotation: CW
- Tooth Count: 11T
- Adjustable Mount: Infi-Clock
- Mounting Block Material: Billet Aluminum
- Max Compression Ratio: 18:1
- Replacement Solenoid: 614
- Replacement Inner Shims: 624
- Replacement Bolts/Block Shim Kit: N/A
- Replacement Bendix Gear: 604
- Replacement Clutch Assembly: 616
