Alternator Kit, High Mount off WP [SBC] 1V w/8102-1 (Offset Right Mtg) 65A Alt
- UPC: 692209020608
- Instruction Manual link 1 (PDF)
- Instruction Manual Link 2 (PDF)
Part
8-803
- Amperage: 65
- Mounting: Offset Right 6.42"
- Finish: Black
- Belt Type: V-Belt
- Case: Denso 110mm
- Voltage: 12V
- Idle40
- CruiseN/A
- Top End65
Product Description

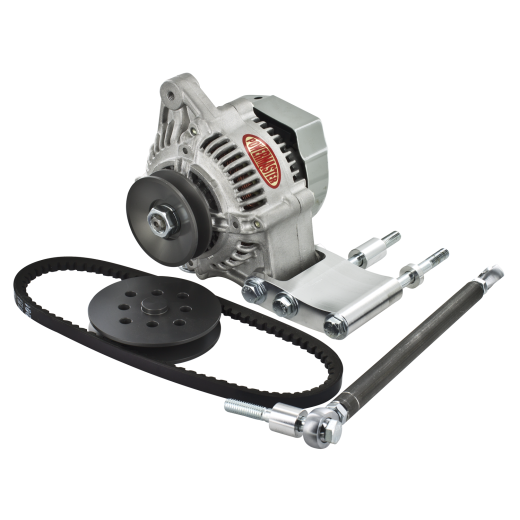

Lightweight billet aluminum bracket assembly kit for small block Chevy engine, mounts high to water pump bolts, with 8102-1 alternator.
- Feature Point 1: Fits Small Block Chevy
- Feature Point 2: 65 Plus Amps At Top End/40 Plus Amps At Idle
- Feature Point 3: Machined From Billet Aluminum For Light Weight And Durability
- Feature Point 4: Hardcoat Anodized Pulleys For Durability
- Feature Point 5: Mounts To Water Pump Bolts
- Feature Point 6: No Interference With Existing Setup In Most Cases
- Feature Point 7: Designed For Circle Track Applications
- Notes: For Racing Use Only. Gates 7240 Belt Included.
- Wiring: 1-Wire
- Regulator: Internal
- Regulator Included: Yes
- Pulley Type: Solid
- Pulley Size: 1V, 3/8" x 2.80" OD, 3/8" x 3.80" OD, Deep Groove
- Pulley Included: Yes
- Bracket Included: Yes
- Replacement Pulley: 180
- Replacement Fan: N/A
- Replacement Baffle: N/A
- Replacement Cone: N/A
- Replacement Bracket: 802
