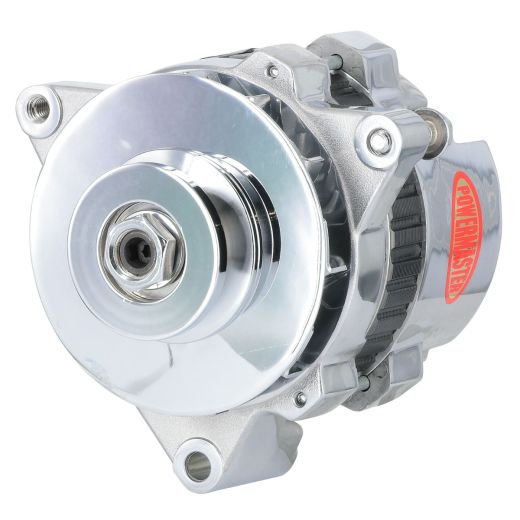

Alt, GM CS121 "5X5" Polish 100A XS Volt™ 1V Pulley, Fan & Baffle Stgr Mtg 6.14" Side BAT Post
- UPC: 692209016694
- Instruction Manual link 1 (PDF)
Part
28468
- Amperage: 100
- Mounting: Straight 6.14"
- Finish: Polished
- Belt Type: V-Belt
- Case: CS121
- Voltage: 12-16V Adjustable
- Idle60
- Cruise90
- Top End100
Product Description
Powermaster race alternators supply the current that your race vehicle needs, ensuring the electrical and ignition systems have enough voltage/amperage to operate at peak performance. This also means your battery stays fully charged and predictable—you don't have to worry about your vehicle not starting at race time. They feature a variety of high-amperage ratings & one-wire hookup. Some models also include a pulley. Order the alternator designed for your vehicle application.
- Feature Point 1: XS Volt™ Unique Voltage Control System
- Feature Point 2: 100 Plus Amps At Top End/60 Plus Amps At Idle
- Feature Point 3: User Adjustable Voltage Set Point Between 13.5-18.5 Volts
- Feature Point 4: Individually Dyno Tested with Proof of Performance Guarantee
- Feature Point 5: Great for 12V/14V And 16V Systems
- Feature Point 6: Instructions For All of the XS Volt™ Features Included
- Feature Point 7: Compact Design To Snug It Up In A 5X5 Space
- Notes: For Racing Use Only
- Wiring: 1-Wire
- Regulator: XS Volt™
- Regulator Included: Yes
- Pulley Type: Solid
- Pulley Size: 1V, 3/8" x 2.62" OD
- Pulley Included: Yes
- Bracket Included: No
- Replacement Pulley: 117
- Replacement Fan: N/A
- Replacement Baffle: 342
- Replacement Cone: N/A
- Replacement Bracket: N/A
